622M SFP
622M SFP-BIDI

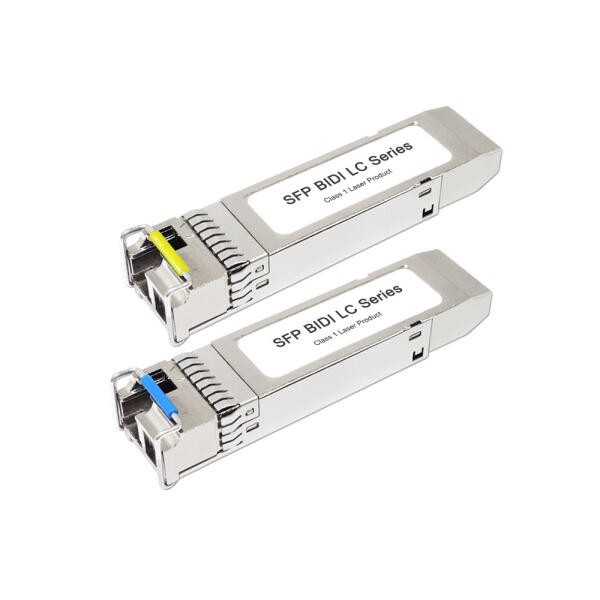

622M SFP OC-12 IR-1 / STM-4 S4.1 BX-U 光纖模組
Hot Pluggable, BiDi LC, 1310nm / 1550nm, Single Mode, 20KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSFP-B8-S35-20D | 622M | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | 0~70°C | SFP-622M-BX20-U3 | |
| FSFP-B8-S35-20Di | 622M | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | -40~85°C | SFP-622M-BX20-U3, I-Temp | |
| FSFP-B8-S53-20D | 622M | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | 0~70°C | SFP-622M-BX20-D5 | |
| FSFP-B8-S53-20Di | 622M | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | -40~85°C | SFP-622M-BX20-D5, I-Temp | |
- SONET OC-12 / SDH STM-4 @622M
- Compatible with SONET OC-12 IR-1 and SDH STM-4 S4.1
- Compliant with INF-8074i SFP MSA
- Hot Pluggable
- 1310nm/1550nm laser transmitter
- Simplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 20km over SM fiber
- RoHS Compliant
