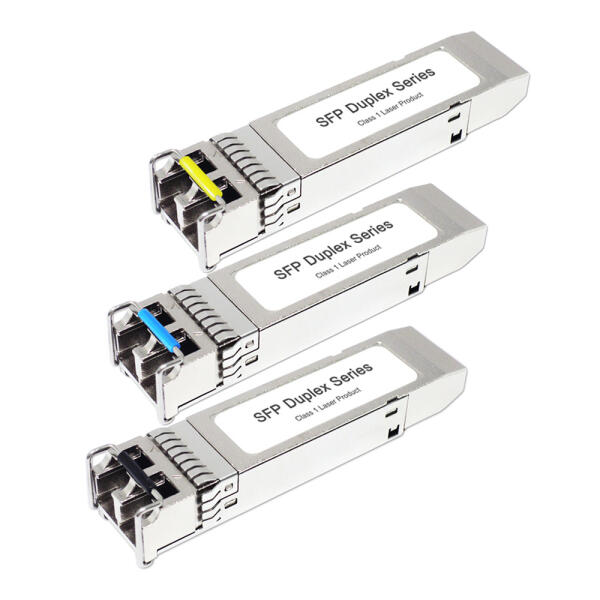

622M SFP-Duplex
622M STM-4/OC-12 SFP 光纖模組
Hot Pluggable, Duplex LC, 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 550M~160KM
| 詢價單 | 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 下載 |
|---|---|---|---|---|---|---|---|---|
FSFP-B7-M85-X5D | 622M | 850nm | Duplex LC | OM2 550m | 0~70°C | SFP-622M-MM550m, C-Temp |  | |
FSFP-B7-M85-X5Di | 622M | 850nm | Duplex LC | OM2 550m | -40~85°C | SFP-622M-MM550m, I-Temp | | |
FSFP-B7-S13-20D | 622M | 1310nm | Duplex LC | SM 20km | 0~70°C | SFP-622M-20km, C-Temp | | |
FSFP-B7-S13-20Di | 622M | 1310nm | Duplex LC | SM 20km | -40~85°C | SFP-622M-20km, I-Temp | | |
FSFP-B7-S13-40D | 622M | 1310nm | Duplex LC | SM 40km | 0~70°C | SFP-622M-40km, C-Temp | | |
FSFP-B7-S13-40Di | 622M | 1310nm | Duplex LC | SM 40km | -40~85°C | SFP-622M-40km, I-Temp | | |
FSFP-B7-S13-60D | 622M | 1310nm | Duplex LC | SM 60km | 0~70°C | SFP-622M-60km, C-Temp | - | |
FSFP-B7-S13-60Di | 622M | 1310nm | Duplex LC | SM 60km | -40~85°C | SFP-622M-60km, I-Temp | | |
FSFP-B7-S15-40D | 622M | 1550nm | Duplex LC | SM 40km | 0~70°C | SFP-622M-1550-40km, C-Temp | | |
FSFP-B7-S15-40Di | 622M | 1550nm | Duplex LC | SM 40km | -40~85°C | SFP-622M-1550-40km, I-Temp | | |
FSFP-B7-S15-80D | 622M | 1550nm | Duplex LC | SM 80km | 0~70°C | SFP-622M-80km, C-Temp | | |
FSFP-B7-S15-80Di | 622M | 1550nm | Duplex LC | SM 80km | -40~85°C | SFP-622M-80km, I-Temp | | |
FSFP-B7-S15-A0D | 622M | 1550nm | Duplex LC | SM 100km | 0~70°C | SFP-622M-100km, C-Temp | | |
FSFP-B7-S15-A0Di | 622M | 1550nm | Duplex LC | SM 100km | -40~85°C | SFP-622M-100km, I-Temp | | |
FSFP-B7-S15-A2D | 622M | 1550nm | Duplex LC | SM 120km | 0~70°C | SFP-622M-120km, C-Temp | | |
FSFP-B7-S15-A2Di | 622M | 1550nm | Duplex LC | SM 120km | -40~85°C | SFP-622M-120km, I-Temp | | |
FSFP-B7-S15-A4D | 622M | 1550nm | Duplex LC | SM 140km | 0~70°C | SFP-622M-140km | | |
FSFP-B7-S15-A6D | 622M | 1550nm | Duplex LC | SM 160km | 0~70°C | SFP-622M-160km | |
