SFP+

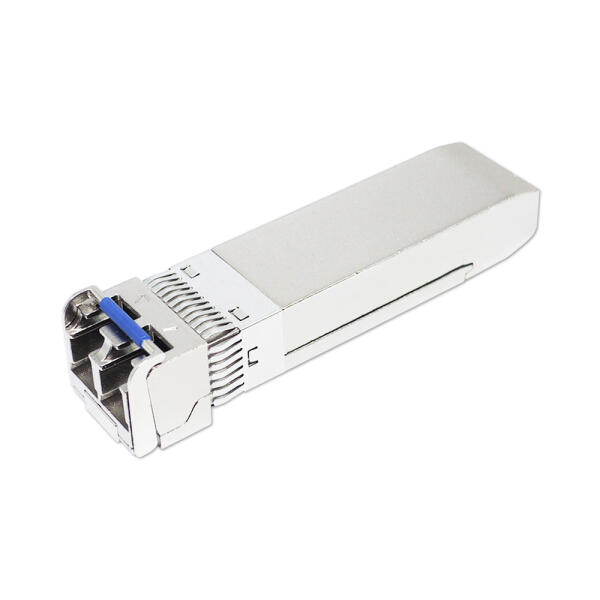

8GFC SFP+ Duplex
8GFC SFP+ SW 光纖模組
Hot Pluggable, Duplex LC, 850nm, Multi-Mode, OM3 150M
8GFC / 4GFC / 2GFC SFP+ ELR 光纖模組
Hot Pluggable, Duplex LC, 1310nm, Single Mode, 30KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSPP-87-M85-X1D | 8G | 850nm | Duplex LC | OM3 150m | 0~70°C | SFP+8GFC-SW | |
| FSPP-87-M85-X1Di | 8G | 850nm | Duplex LC | OM3 150m | -40~85°C | SFP+8GFC-SW, I-Temp | |
| FSPP-87-S13-30DM | 8G | 1310nm | Duplex LC | SM 30km | 0~70°C | SFP+8GFC-ELR, Multi-Rate | |
| FSPP-87-S13-30DMi | 8G | 1310nm | Duplex LC | SM 30km | -40~85°C | SFP+8GFC-ELR, Multi-Rate, I-Temp | |
- Fiber Channel FC-PI-4 800-M5E-SN-I 8GFC,
800-M5-SN-S, 800-M6-SN-S @8.5G ( SFP+8GFC-SW ) - Fiber Channel 800-SM-LC-L 8GFC @8.5G,
400-SM-LC-L 4GFC @4.25G,
200-SM-LC-L 2GFC @2.125G
- Compliant with Fiber Channel 8GFC FC-PI-4 800-M5-SN-S, 800-M6-SN-S and 800-M5E-SN-I ( SFP+8GFC-SW )
- Data Rate 8.5Gb/s ( SFP+8GFC-SW )
- Compliant with SFF-8431, SFF-8432 SFP+ MSA
- Support 2.125 / 4.25 / 8.5Gb/s Multi-Rate
- Hot Pluggable
- 850nm VCSEL / 1310nm DFB laser transmitter
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 21m over MM OM1 fiber, 50m over MM OM2 fiber and 150m over MM OM3 fiber ( SFP+8GFC-SW )
- Link distance 30km over SM fiber
- RoHS Compliant
