SFP
SFP-1000T

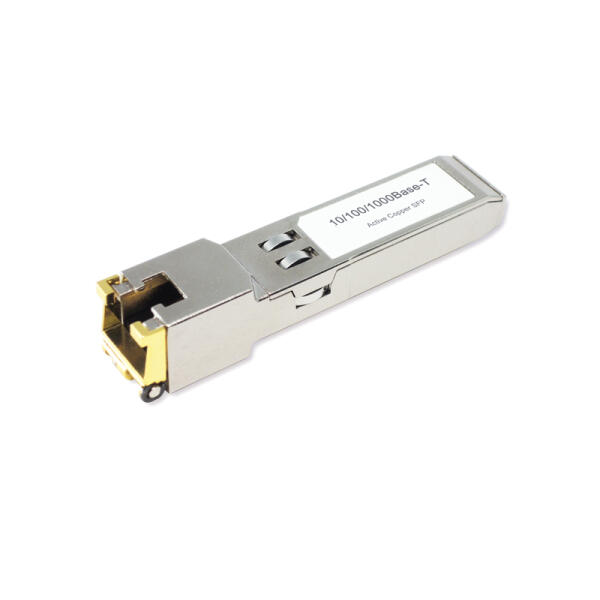

1.25G SFP-1000T 光纖模組
Hot Pluggable, RJ-45, Active Copper 100M
1.25G SFP-10/100/1000T SGMII 光纖模組
Hot Pluggable, RJ-45, Active Copper 100M
| 產品料號 | 連接器 | 主機埠 | 網線連接速度 (RJ45接口) / 距離 | Rx_LOS 指示針腳 | 預設啟用自動交涉功能 (10/100/1000Base-X) | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|---|
| FSFP-CJ-T01-X1 | Copper RJ45 | SERDES | 1000M @Cat.5 UTP cable, 100m | YES | NO | 0~70°C | SFP-1000T | |
| FSFP-CJ-T01-X1i | Copper RJ45 | SERDES | 1000M @Cat.5 UTP cable, 100m | YES | NO | -40~85°C | SFP-1000T, I-Temp | |
| FSFP-CJ-T10-X1 | Copper RJ45 | SERDES | 1000M @Cat.5 UTP cable, 100m | NO | YES | 0~70°C | SFP-1000T | |
| FSFP-CJ-T10-X1i | Copper RJ45 | SERDES | 1000M @Cat.5 UTP cable, 100m | NO | YES | -40~85°C | SFP-1000T, I-Temp | |
| FSFP-CJ-T11-X1 | Copper RJ45 | SERDES | 1000M @Cat.5 UTP cable, 100m | YES | YES | 0~70°C | SFP-1000T | |
| FSFP-CJ-T11-X1i | Copper RJ45 | SERDES | 1000M @Cat.5 UTP cable, 100m | YES | YES | -40~85°C | SFP-1000T, I-Temp | |
| FSFP-CJ-T22-X1 | Copper RJ45 | SGMII | 10/100/1000M @Cat.5 UTP cable, 100m | YES | YES | 0~70°C | SFP-10/100/1000-SGMII | |
| FSFP-CJ-T22-X1i | Copper RJ45 | SGMII | 10/100/1000M @Cat.5 UTP cable, 100m | YES | YES | -40~85°C | SFP-10/100/1000-SGMII, I-Temp | |
| FSFP-CJ-T20-X1 | Copper RJ45 | SGMII | 10/100/1000M @Cat.5 UTP cable, 100m | NO | YES | 0~70°C | SFP-10/100/1000-SGMII | |
| FSFP-CJ-T20-X1i | Copper RJ45 | SGMII | 10/100/1000M @Cat.5 UTP cable, 100m | NO | YES | -40~85°C | SFP-10/100/1000-SGMII, I-Temp | |
- Gigabit Ethernet 10/100/1000BASE-T
- Compliant with IEEE802.3-2002 and 802.3ab
- Compliant with SFP MSA
- Hot Pluggable
- Auto-detect MDI/MDI-X
- Compatible with 1000BASE-X and 1000BASE-T auto-negotiation
- 10/100/1000BASE-T operation in host system with SGMII interface
- RJ-45 connector
- Single +3.3V power supply
- Link length up to 100m with four-pair Cat.5 UTP cable
- RoHS Compliant
