SFP

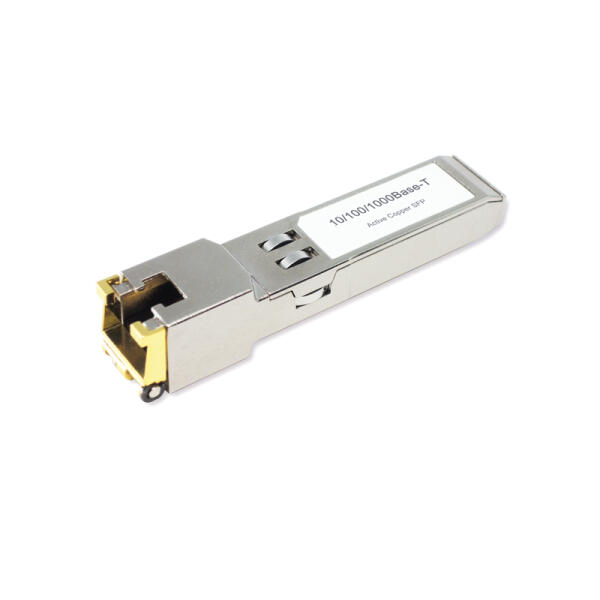

SFP-1000T, SERDES only
1.25G SFP-1000T 光纖模組
Hot Pluggable, RJ-45, Active Copper SFP , SERDES only
| 產品料號 | 連接器 | 主機連 接埠介面 | 網線連接速度 (RJ45接口) / 距離 | Rx_LOS 連結指示器 | RJ-45自動協商 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|---|
| FSFP-CJ-T11-X1-1W1 | Copper RJ45 | SERDES | 100/1000M @Cat.5 UTP cable, 100m | YES | Yes (10/100/1000T) | 0~70°C | SFP-1000T, SERDES only | |
| FSFP-CJ-T11-X1i-1W1 | Copper RJ45 | SERDES | 100/1000M @Cat.5 UTP cable, 100m/ | YES | Yes (10/100/1000T) | -40~85°C | SFP-1000T, SERDES only, I-Temp | |
- Gigabit Ethernet 10/100/1000BASE-T
- Fast Ethernet 10/100BASE-TX
- Compliant with IEEE802.3-2002 and 802.3ab
- Compliant with SFP MSA
- Hot Pluggable
- Auto-detect MDI/MDI-X
- 10/100/1000BASE-T auto-negotiation on RJ-45 side
- 100BASE or 1000BASE operation in host system with SERDES interface
- RJ-45 connector
- Single +3.3V power supply
- Link length up to 100m with four-pair Cat.5 UTP cable
- RoHS Compliant
