SFP+

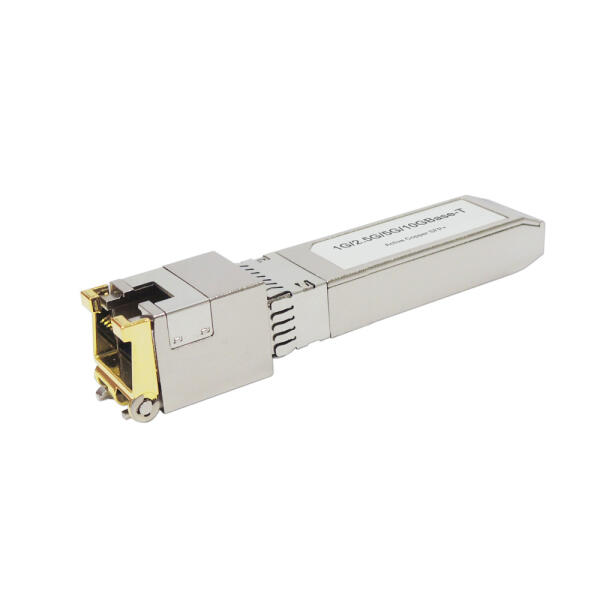

SFP+ 10G-T
10G Ethernet SFP+ 光纖模組
Hot Pluggable, RJ-45, Active Copper, 30M~80M
| 產品料號 | 連接器 | 主機埠 | 網線連接速度 (RJ45接口) / 距離 | Rx_LOS 指示針腳 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSPP-HJ-T11-Y3 | Copper RJ45 | XFI | 10GBASE-T @Cat.6a/7 cable , 30m | YES | 0~70°C | SFP-10GB-T 30m | |
| FSPP-HJ-T11-Y3i | Copper RJ45 | XFI | 10GBASE-T @Cat.6a/7 cable , 30m | YES | -40~85°C | SFP-10GB-T 30m-IT, I-Temp | |
| FSPP-HJ-T12-Y3 | Copper RJ45 | XFI | 10GBASE-T @Cat.6a/7 cable, 30m 5GBASE-T @Cat.5E cable, 50m 2.5GBASE-T @Cat.5E cable, 50m 1000BASE-T @Cat.5E cable, 100m 100BASE-TX @Cat.5E cable 100m | YES | 0~70°C | SFP-10GB-T 30m | |
| FSPP-HJ-T12-Y3-AQ1 | Copper RJ45 | XFI | 10GBASE-T @Cat.6a/7 cable, 30m 5GBASE-T @Cat.5E cable, 50m 2.5GBASE-T @Cat.5E cable, 50m 1000BASE-T @Cat.5E cable, 100m 100BASE-TX @Cat.5E cable 100m | YES | 0~70°C | SFP-10GB-T 30m | |
| FSPP-HJ-T12-Y3i-AQ1 | Copper RJ45 | XFI | 10GBASE-T @Cat.6a/7 cable, 30m 5GBASE-T @Cat.5E cable, 50m 2.5GBASE-T @Cat.5E cable, 50m 1000BASE-T @Cat.5E cable, 100m 100BASE-TX @Cat.5E cable 100m | YES | -40~85°C | SFP-10GB-T 30m, I-Temp | |
| FSPP-HJ-T22-Y3 | Copper RJ45 | XFI 5GBASE-R 2.5GBASE-X 1000BASE-X | 10GBASE -T @Cat.6a/7 cable, 30m 5GBASE -T @Cat.5E cable, 50m 2.5GBASE -T @Cat.5E cable, 50m 1000BASE -T @Cat.5E cable, 100m | YES | 0~70°C | SFP-10GB-T 30m | |
| FSPP-HJ-T11-Y8 | Copper RJ45 | XFI | 10GBASE-T @Cat.6a/7 cable, 80m | YES | 0~70°C | SFP-10GB-T 80m | |
- 1G / 2.5G / 5G / 10GBASE-T Application
- Compliant with IEEE 802.3an, 802.3ab and 802.3z
- Compliant with SFF-8431, SFF-8432 SFP+ MSA
- Support 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/1000BASE-T/ 100BASE-TX
- Hot Pluggable
- Auto-negotiates with other 10GBASE-T PHYs
- Auto-detect MDI/MDI-X
- Support RX_LOS function
- RJ-45 connector
- Single +3.3V power supply
- 10G link length up to 30m~80km
- RoHS Compliant
