100G QSFP28
100G-QSFP28-BIDI-80

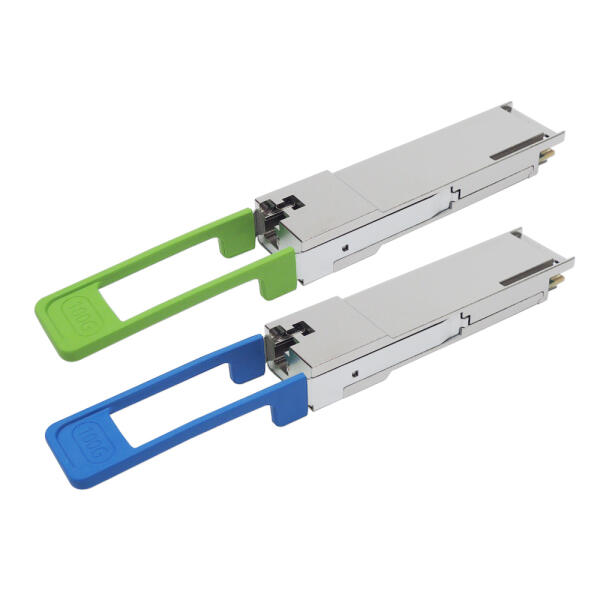

100G QSFP28 ZR4 BiDi 光纖模組
Hot Pluggable, BiDi LC, LWDM EML, SMF 80KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQ28-K8-L73-80D | 100G | Tx LWDM 1273.55~1286.66nm EML / Rx 1295.56~1309.14nm | BiDi LC | SM 80km | 0~70°C | QSFP28-100G-BX80-1273, C-Temp | |
| FQ28-K8-L95-80D | 100G | Tx LWDM 1295.56~1309.14nm EML / Rx 1273.55~1286.66nm | BiDi LC | SM 80km | 0~70°C | QSFP28-100G-BX80-1295, C-Temp | |
- 100GBASE-ZR4 Ethernet
- Infiniband QDR and DDR
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compatible with IEEE802.3ba 100GBASE-ER4
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- 4CH LWDM MUX / DEMUX design
- Data Rate up to 25.78125Gbps per Lane
- Built in Tx CDR and Rx CDR
- O-Band LWDM 1273.55~1286.66nm EML transmitter
- SOA + PIN receiver
- Simplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Operating Temperature 0~70°C
- Link distance 80km over SM fiber with FEC
- Maximum Power consumption 5W
100G QSFP28-BIDI 80KM光纖模組支援80km的傳輸距離，並與大多數品牌主機完全相容。我們的光纖收發模組非常適合 100G 乙太網路、數據中心網路、人工智慧應用等。
👍高品質
✔️相容於大多數品牌乙太網路交換機
